Advent of Code 2025 - Day 4

03 Jan 2026

Reading time ~44 minutes

“If you can optimize the work the forklifts are doing, maybe they would have time to spare to break through the wall.”

Github: GCaggianese/AoC-2025/D4

Puzzle Day 4: Printing Department

Part One:

Matrix input where . = paper roll, @ = empty space
Valid = empty space with 5+ adjacent paper rolls
Return count of valid positions

Part Two:

Propagation: valid positions become paper rolls
Repeat until no new valid positions appear
Return total count of all activated positions

I included a Python implementation of the solution that is pretty straightforward to understand.

Implementation in FASM

License

;;; SPDX-FileCopyrightText: 2026 Germán Caggianese <german.caggianese@pm.me>
;;;
;;; SPDX-License-Identifier: Apache-2.0

format ELF64 executable
entry _start

Matrix macro

This macro parses the input file at compile time, converting:

. (paper roll) → 1
@ (empty space) → 0
Newlines and other characters are skipped

The virtual block loads the file into an addressing space, then we iterate through each byte and emit only the meaningful ones.

macro matrix_from_file name, filename {
    virtual at 0
        name#.data:: file filename
        name#.size = $
    end virtual
    label name byte
    name#.len = 0
    repeat name#.size
        load name#.ch byte from name#.data:(%-1)
        if name#.ch = '.'
            db 1
            name#.len = name#.len + 1
        else if name#.ch = '@'
            db 0
            name#.len = name#.len + 1
        end if
    end repeat
}

Data segment

Load the input and define constants

segment readable writeable
    matrix_from_file my_matrix, './input.txt'
    MATRIX_SIZE = my_matrix.len
    ROWS = 138
    COLS = 138

Working buffers

result: stores neighbor sums after each calculation
backup: preserves original matrix state for Part 2

result rb ROWS * COLS
backup rb ROWS * COLS

Direction offsets for 8-connectivity

Each pair is (row~offset~, col~offset~) as signed bytes.

directions db -1,-1, -1,0, -1,1, 0,-1, 0,1, 1,-1, 1,0, 1,1
NUM_DIRS = 8

Counters and output strings

    counter_p1 dq 0
    counter_p2 dq 0

    msg_p1 db 'Counter P1: '
    msg_p1_len = $ - msg_p1
    msg_p2 db 'Counter P2: '
    msg_p2_len = $ - msg_p2
    buffer rb 16
    newline db 0x0A

segment readable executable

Main logic

_start:

Backup original matrix

We need to preserve the original state because Part 2 will modify it.

Copy my~matrix~ → backup

    xor rcx, rcx
.backup_loop:
    cmp rcx, MATRIX_SIZE
    jge .part1_start
    mov al, [my_matrix + rcx]
    mov [backup + rcx], al
    inc rcx
    jmp .backup_loop

Part 1: Single pass calculation

Add neighbours

For each cell, sum its value plus all valid neighbors. Note:

r12 = row index
r13 = col index

.part1_start:
    xor r12, r12

.p1_row_loop:
    cmp r12, ROWS
    jge .p1_correction

    xor r13, r13

.p1_col_loop:
    cmp r13, COLS
    jge .p1_next_row

Calculate linear index: rax = row * COLS + col Note:

r14 = sum (starts with cell value)
r15 = direction index

    mov rax, r12
    imul rax, COLS
    add rax, r13
    movzx r14d, byte [my_matrix + rax]

    xor r15, r15

.p1_dir_loop:
    cmp r15, NUM_DIRS
    jge .p1_store_result

Load direction offsets


movsx r8, byte [directions + r15*2]      ; r8 = di
movsx r9, byte [directions + r15*2 + 1]  ; r9 = dj

Calculate neighbor position Note:

r10 = ni = row + di
r11 = nj = col + dj


mov r10, r12
add r10, r8
mov r11, r13
add r11, r9

Bounds check: 0 <= ni < ROWS && 0 <= nj < COLS

cmp r10, 0
jl .p1_next_dir
cmp r10, ROWS
jge .p1_next_dir
cmp r11, 0
jl .p1_next_dir
cmp r11, COLS
jge .p1_next_dir

Add neighbor value to sum

    mov rax, r10
    imul rax, COLS
    add rax, r11
    movzx eax, byte [my_matrix + rax]
    add r14, rax

.p1_next_dir:
    inc r15
    jmp .p1_dir_loop

.p1_store_result:
    mov rax, r12
    imul rax, COLS
    add rax, r13
    mov byte [result + rax], r14b

    inc r13
    jmp .p1_col_loop

.p1_next_row:
    inc r12
    jmp .p1_row_loop

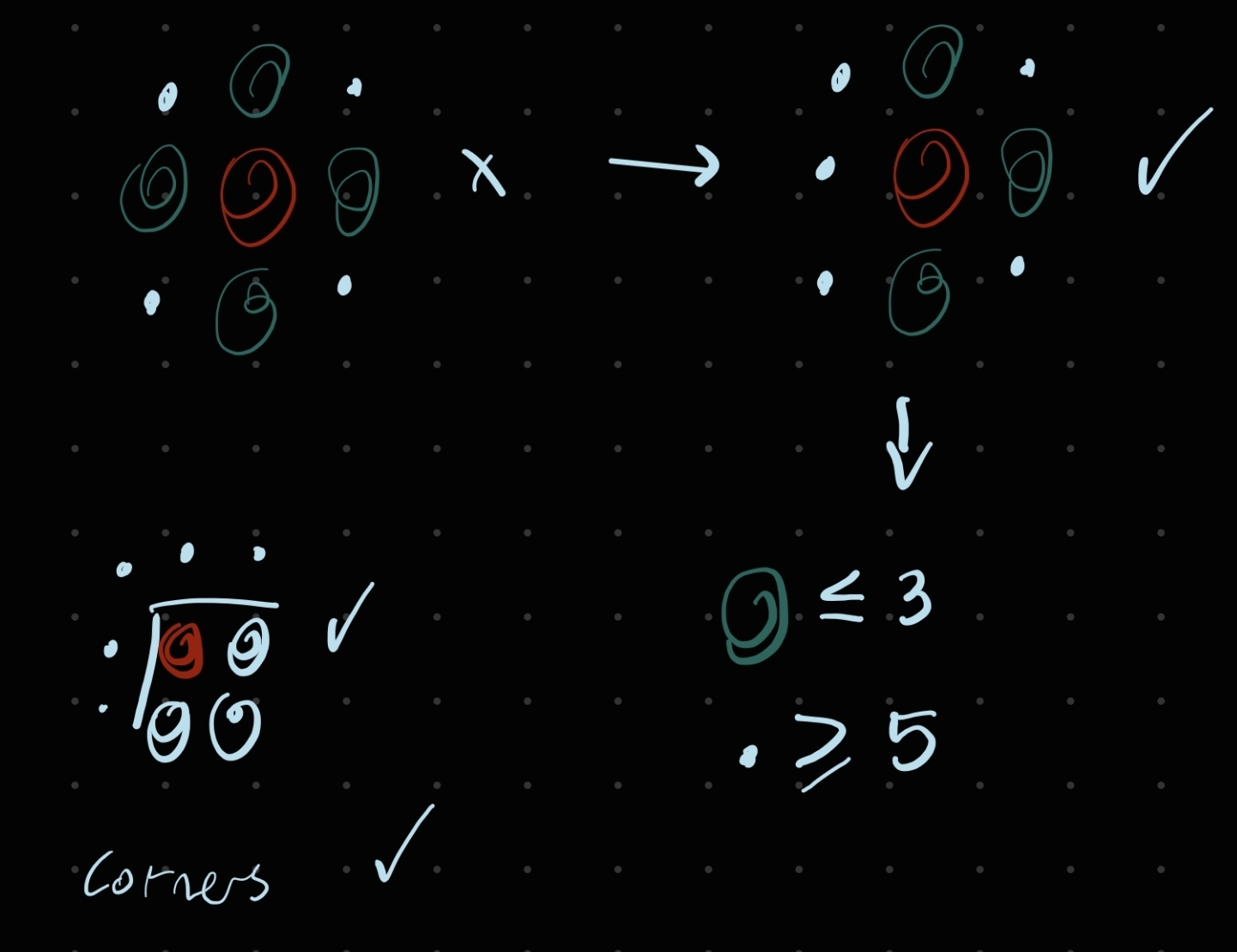

Correction

Edge cells have fewer neighbors, so we compensate:

Edge cells (non-corner): +3
Corner cells: +3 +2 = +5

This normalizes all cells as if surrounded by empty space.

Top row: +3

.p1_correction:
    xor rcx, rcx
.p1_top_row:
    cmp rcx, COLS
    jge .p1_bottom_row
    add byte [result + rcx], 3
    inc rcx
    jmp .p1_top_row

Bottom row: +3


.p1_bottom_row:
    xor rcx, rcx
.p1_bottom_loop:
    cmp rcx, COLS
    jge .p1_left_col
    mov rax, (ROWS-1) * COLS
    add rax, rcx
    add byte [result + rax], 3
    inc rcx
    jmp .p1_bottom_loop

Left column (excluding corners): +3

.p1_left_col:
    mov rcx, 1
.p1_left_loop:
    cmp rcx, ROWS-1
    jge .p1_right_col
    mov rax, rcx
    imul rax, COLS
    add byte [result + rax], 3
    inc rcx
    jmp .p1_left_loop

Right column (excluding corners): +3

.p1_right_col:
    mov rcx, 1
.p1_right_loop:
    cmp rcx, ROWS-1
    jge .p1_corners
    mov rax, rcx
    imul rax, COLS
    add rax, COLS-1
    add byte [result + rax], 3
    inc rcx
    jmp .p1_right_loop

Corners: additional +2

.p1_corners:
    add byte [result], 2                              ; [0][0]
    add byte [result + COLS - 1], 2                   ; [0][COLS-1]
    add byte [result + (ROWS-1) * COLS], 2            ; [ROWS-1][0]
    add byte [result + (ROWS-1) * COLS + COLS - 1], 2 ; [ROWS-1][COLS-1]

Filter (elementwise multiply with inverted original)

Zero out positions where original had a 1 (paper roll). We only care about empty spaces (@) that have many neighbors.

    xor rcx, rcx
.p1_filter_loop:
    cmp rcx, MATRIX_SIZE
    jge .p1_count

    cmp byte [my_matrix + rcx], 1
    jne .p1_filter_next
    mov byte [result + rcx], 0

.p1_filter_next:
    inc rcx
    jmp .p1_filter_loop

Count cells with value ≥ 5

Note:

r12 = counter

.p1_count:
    xor r12, r12
    xor rcx, rcx

.p1_count_loop:
    cmp rcx, MATRIX_SIZE
    jge .p1_done

    cmp byte [result + rcx], 5
    jl .p1_count_next
    inc r12

.p1_count_next:
    inc rcx
    jmp .p1_count_loop

.p1_done:
    mov [counter_p1], r12

Part 2: Propagation loop

Restore original matrix and iterate until saturation. Each iteration, cells with ≥5 neighbors become paper rolls.

Restore my~matrix~ from backup

    xor rcx, rcx
.restore_loop:
    cmp rcx, MATRIX_SIZE
    jge .p2_main_loop
    mov al, [backup + rcx]
    mov [my_matrix + rcx], al
    inc rcx
    jmp .restore_loop

    mov qword [counter_p2], 0

.p2_main_loop:

Add neighbours (same algorithm as Part 1)

    xor r12, r12

.p2_row_loop:
    cmp r12, ROWS
    jge .p2_correction

    xor r13, r13

.p2_col_loop:
    cmp r13, COLS
    jge .p2_next_row

    mov rax, r12
    imul rax, COLS
    add rax, r13
    movzx r14d, byte [my_matrix + rax]

    xor r15, r15

.p2_dir_loop:
    cmp r15, NUM_DIRS
    jge .p2_store_result

    movsx r8, byte [directions + r15*2]
    movsx r9, byte [directions + r15*2 + 1]

    mov r10, r12
    add r10, r8
    mov r11, r13
    add r11, r9

    cmp r10, 0
    jl .p2_next_dir
    cmp r10, ROWS
    jge .p2_next_dir
    cmp r11, 0
    jl .p2_next_dir
    cmp r11, COLS
    jge .p2_next_dir

    mov rax, r10
    imul rax, COLS
    add rax, r11
    movzx eax, byte [my_matrix + rax]
    add r14, rax

.p2_next_dir:
    inc r15
    jmp .p2_dir_loop

.p2_store_result:
    mov rax, r12
    imul rax, COLS
    add rax, r13
    mov byte [result + rax], r14b

    inc r13
    jmp .p2_col_loop

.p2_next_row:
    inc r12
    jmp .p2_row_loop

Correction (same as Part 1)

.p2_correction:
    xor rcx, rcx
.p2_top_row:
    cmp rcx, COLS
    jge .p2_bottom_row
    add byte [result + rcx], 3
    inc rcx
    jmp .p2_top_row

.p2_bottom_row:
    xor rcx, rcx
.p2_bottom_loop:
    cmp rcx, COLS
    jge .p2_left_col
    mov rax, (ROWS-1) * COLS
    add rax, rcx
    add byte [result + rax], 3
    inc rcx
    jmp .p2_bottom_loop

.p2_left_col:
    mov rcx, 1
.p2_left_loop:
    cmp rcx, ROWS-1
    jge .p2_right_col
    mov rax, rcx
    imul rax, COLS
    add byte [result + rax], 3
    inc rcx
    jmp .p2_left_loop

.p2_right_col:
    mov rcx, 1
.p2_right_loop:
    cmp rcx, ROWS-1
    jge .p2_corners
    mov rax, rcx
    imul rax, COLS
    add rax, COLS-1
    add byte [result + rax], 3
    inc rcx
    jmp .p2_right_loop

.p2_corners:
    add byte [result], 2
    add byte [result + COLS - 1], 2
    add byte [result + (ROWS-1) * COLS], 2
    add byte [result + (ROWS-1) * COLS + COLS - 1], 2

Filter

    xor rcx, rcx
.p2_filter_loop:
    cmp rcx, MATRIX_SIZE
    jge .p2_count_and_activate

    cmp byte [my_matrix + rcx], 1
    jne .p2_filter_next
    mov byte [result + rcx], 0

.p2_filter_next:
    inc rcx
    jmp .p2_filter_loop

Count and activate

Count cells ≥5 and activate them in my_matrix for next iteration.

.p2_count_and_activate:
    xor rbx, rbx            ; rbx = new_activations this iteration
    xor rcx, rcx

.p2_count_loop:
    cmp rcx, MATRIX_SIZE
    jge .p2_check_continue

    cmp byte [result + rcx], 5
    jl .p2_count_next

    inc rbx                         ; new_activations++
    mov byte [my_matrix + rcx], 1   ; activate: becomes paper roll

.p2_count_next:
    inc rcx
    jmp .p2_count_loop

.p2_check_continue:
    ; counter_p2 += new_activations
    add [counter_p2], rbx

    ; if new_activations > 0, continue propagating
    test rbx, rbx
    jnz .p2_main_loop

Output

Print Part 1 result

.print_results:
    ; Print "Counter P1: "
    mov rax, 1
    mov rdi, 1
    mov rsi, msg_p1
    mov rdx, msg_p1_len
    syscall

    ; Convert counter_p1 to string
    mov rax, [counter_p1]
    call .print_number_in_rax

Print Part 2 result

; Print "Counter P2: "
mov rax, 1
mov rdi, 1
mov rsi, msg_p2
mov rdx, msg_p2_len
syscall

; Convert counter_p2 to string
mov rax, [counter_p2]
call .print_number_in_rax

jmp .exit

Number printing subroutine

Converts value in rax to decimal string and prints it with newline.

.print_number_in_rax:
    lea rdi, [buffer + 15]
    mov rcx, 10

    test rax, rax
    jnz .convert_loop
    ; Handle zero case
    dec rdi
    mov byte [rdi], '0'
    jmp .do_print

.convert_loop:
    test rax, rax
    jz .do_print
    xor rdx, rdx
    div rcx                 ; rax = quotient, rdx = remainder
    add dl, '0'
    dec rdi
    mov [rdi], dl
    jmp .convert_loop

.do_print:
    ; Calculate length and print
    lea rdx, [buffer + 15]
    sub rdx, rdi            ; rdx = length
    mov rsi, rdi
    mov rax, 1
    mov rdi, 1
    syscall

    ; Print newline
    mov rax, 1
    mov rdi, 1
    mov rsi, newline
    mov rdx, 1
    syscall
    ret

Exit

.exit:
    ;; 下次見～
    mov rax, 60
    xor rdi, rdi
    syscall

Compile and Run

Compile main.asm with fasm main.asm and run it with ./main. It should work on every x86 and x86-64 system. The input is hardcoded to be at ./input.txt

Expected output:

Counter P1: <number>
Counter P2: <number>

Some benchmarks

Python3

❯ time python3 draft.py Counter P1: 1549 Counter P2: 8887

Executed in 1.16 secs fish external usr time 1.15 secs 0.00 micros 1.15 secs sys time 0.01 secs 871.00 micros 0.00 secs

PyPy3

❯ time pypy3 draft.py Counter P1: 1549 Counter P2: 8887

Executed in 215.26 millis fish external usr time 193.14 millis 0.00 millis 193.14 millis sys time 21.98 millis 1.14 millis 20.84 millis

FASM

❯ time ./main #FASM Counter P1: 1549 Counter P2: 8887

Executed in 29.71 millis fish external usr time 28.89 millis 0.00 micros 28.89 millis sys time 0.77 millis 773.00 micros 0.00 millis

As expected FASM is in the order of 10.7x faster than PyPy’s JIT, and 58x faster than Python. I know that my FASM code is not the most efficient, not optimized, neither is the Python one, this benchmark is just a funny fact.
